Ao / Awl Impregnated Wireline Diamond Core Drill Bit Od:47.63mm Id:25.97 Mm
AQ imp diamond core bit and AQ reaming shell
The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application.
Reaming shell is set with natural or synthetic diamond or hard alloy, it is used to couple the drill bit with the core barrel.
Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits.
Features:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature "pull-out" of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Type of Bit Matrix:
The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action, also with long life using time is important, meanwhile it will keep the cost of diamond drilling to a minimum.
The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.
Our Advantages:
a. Extensive Production Experience: we are specialized in diamond core bits,drill bits,wireline drilling tools,drill pipes,casings,mud pumps, underground drilling rigs with an experience of 10 years.

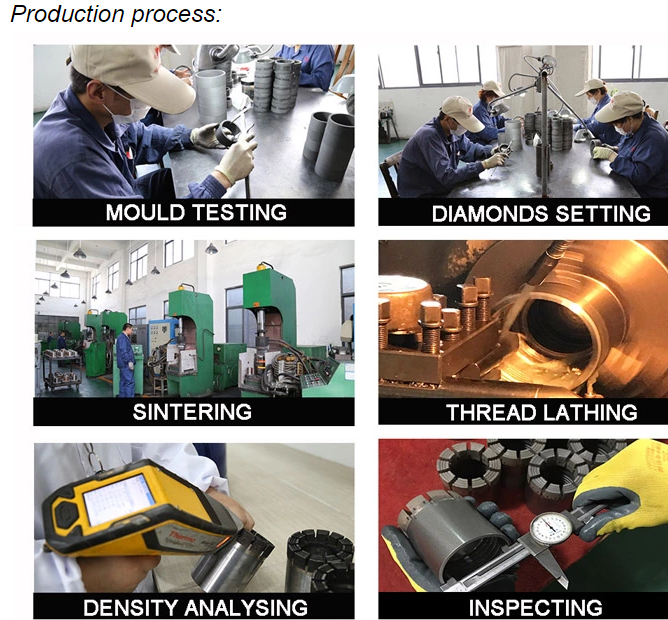

b. Complete Production Facilities: owning precision CNC machine, Milling machine, Sintering machine, Manipultator and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High Quality Raw Material: we mainly choose raw material from big steel factory, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
d. Strict Physical/Chemical Testing Procedures: meeting the requirements of the product design and process, providing reliable testing data.
e. Short Delivery Time: If one container 15-20 days. We also stock some standard-sized tubes and rods, if you need 3-5 pcs, we can delivery soon.
f. Safe Packing: anti-rust oil be spread on tubes and rods before shipping, plastic caps on tube ends to protect inside surface, each rod be protected with cardboard tube. Finally be packed with seaworthy package or in wooden case.
g. Best After-Sale Service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.
| Size Available |
| Q Series | AQ, BQ, NQ. NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK |
| T2 Series | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| T6 Series | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, |
| T6S Series | T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146 |
| T Series | T36, T46, T56, T66, T76, T86 |
| Z Series | Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146 |
| B Series | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| WF Series | HWF, PWF, SWF, UWF, ZWF |
| WT Series | RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
| WG Series | EWG, AWG, BWG, NWG, HWG ( Single Tule , Double Tube ) |
| WM Series | EWM, AWM, BWM, NWM, HWM |
| Others | NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TT56, TB56, TS16, CHD101 |
| Chinese Standard | 56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm |
| Non-standard also can be made as your demand. |
